Instrument Database:

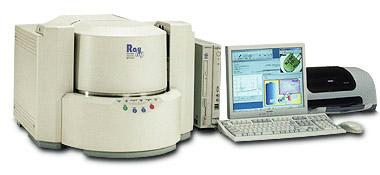

Shimadzu Europe - EDX-700HS/800HS/900HS
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
historical ( out of sale ) |
| Company |
Shimadzu Europe
|
| Categories |
X-ray spectrometer: XRF
|
Various functions and options to fit to various needs in EDX (EDXRF) analysis
Energy Dispersive X-ray fluorescence (EDX) spectrometer is the instrument to perform qualitative and quantitative analyses for elements comprising a material by measuring re-emitted characteristic X-ray from elements. EDX is non-destructive and therefore can be used for various applications like solid, powder, liquid and wafer.
Shimadzu EDX series are ready to respond to versatile demands of yours.
Strong support for the control of harmful metals in resin
It is known that EU is going to implement new legislation to defend environment.
Shimadzu EDX 'HS' series assist you to control harmful metals in resin with higher sensitivity and repeatability. This 'HS' series are developed based on Shimadzu outstanding experience in the field.
Features:
- Sample chamber, that has world first automatic open/close cover, can accept sample up to 300mm dia. X 150mm height.
- Quantitative analysis software for thin-film to organic substances are embedded as standard feature.
- Content matching software that does not require standard sample is equipped as standard feature.
- 5 types of primary X-ray filters with automatic changeover are embedded for high sensitivity analysis. These improve S/N ratio.
- Compact body as 580mm (w) x 650 (d) x 420mm (h).
- Optional items of CCD camera and automatic collimator are available to support precise positioning and analysis.
- Liquid Nitrogen is required only at the time of measurement.
- Choice of thermoelectric cooling detector is available.
|
|
