Edax Inc. - Eagle III µProbe
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
historical ( out of sale ) |
| Company |
Edax Inc.
|
| Categories |
X-ray spectrometer: XRF
|

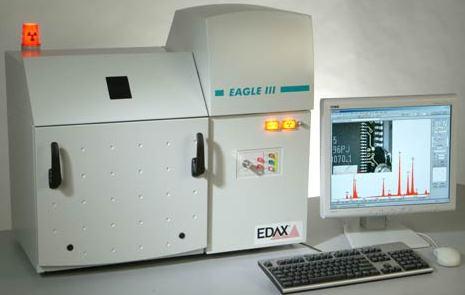

The Eagle-III µProbe from EDAX signifies a new generation of x-ray microfluorescence (XRMF) spectrometer. Packed into a compact, tabletop design, the Eagle-III is one of the most versatile tools available for elemental analysis.
- Non-destructive sample analysis
- Little or no sample preparation for most materials (solids, liquids, powders, films and coatings, non-conductive, polymers...)
- Large sample chamber accommodates irregular sample sizes and shapes
- Fast, simultaneous, multi-element detection for elements sodium to uranium
- Sensitivity from PPM to 100% concentration levels
- Small analytical spot (down to 40 µm with XPL)
- Analysis in air or vacuum
- Simple, optical based point and click navigation
- Qualitative, quantitative and spatial distribution information
Basic Features
The Eagle uses special capillary optics to focus x-rays onto a sample and can achieve spatial resolution for elemental composition down to tens of microns. As depicted in Figure 1, x-rays are collected at the top end of the capillary and directed by reflection or direct transmission to a focal point several millimeters away from the tip of the capillary. The x-ray fluoresence emitted from the sample as a result of the x-ray excitation is captured by the detector, processed and translated into elemental information which is displayed for the user.
Compared to older aperture-based systems, a capillary delivers more of the tube's x-rays to the analysis area, while providing a greater analytical working distance. This means the user can take advantage of higher x-ray flux to achieve faster analysis times and have the ability to analyze a greater variety of sample shapes and contours.
The basic Eagle components include:
- Micro-focus x-ray tube
- High-efficiency capillary optics for creating small x-ray analysis spot
- Precision, computer-controlled XYZ stage
- Low and high magnification CCD cameras for easy sample positioning and rapid set-up of automated experiments
- Large area Si(Li) detector for enhanced sensitivity
- Large, radiation-safe sample chamber
- Digital signal analyzer electronics
- PC-based software for instrument control and data analysis
|
| Specifications |
|
|
Tube
40 W X-ray tube (Mo or Rh)
Capillary Optics
EAGLE III: Mono-capillary:
100 µm, 300 µm
open aperture:
1 and 2 mm spots
EAGLE III XPL: X-ray Poly-capillary Lens (XPL)
40 µm spot
Intensity is roughly 4 times that of 300 µm mono-capillary
Stage
Fully motorized XYZ stage
Low Mag CCD
10X (color)
High Mag CCD
100X (color), 2X digital zoom
Chamber
Standard large sample chamber:
Diameter: 330 mm (13.0") Depth: 320 mm (12.6")
Accepts samples up to 250 mm x 200 mm x 90 mm
Detector
EAGLE III: 80mm2 Lithium-drifted Silicon crystal
Liquid nitrogen cooled
Be window
Na to U simultaneous detection
Resolution:
<155 eV for MnKa @ 5000 CPS
<185 eV for MnKa @ 15,000 CPS
EAGLE III XPL: 30mm2 Lithium-drifted Silicon crystal
Liquid nitrogen cooled
Be window
Na to U simultaneous detection
Resolution:
<140 eV for MnKa @ 5000 CPS
<170 eV for MnKa @ 15,000 CPS
Electronics
EDAX Data Acquisition Module (EDAM) III
High throughput digital pulse processor
Multi-DSP and SMT technology
PCI-bus based connection to CPU
Workstation
Windows XP-based workstation fully-integrated
with EDAX Data Acquisition Module via PCI interface
System configuration and calibration software
Comprehensive qualitative and quantitative software
Optional Line scan and Mapping
|
|
