Component Database:
Glass Expansion - Trident In-Line Reagent Additions Kits
| |
|
|
| |
|
| |
|
| Year of introduction |
2007 |
| Status |
available |
| Company |
Glass Expansion
|
| Categories |
Liquid flow systems: mixing chambers
|
Two Configurations to Suit Your Application
Glass Expansion offers two In-line Reagent Additions kits, one which includes a glass mixing chamber/combiner for solutions which do not contain HF and another which includes an inert mixing chamber/combiner. Both kits are completely modular so that damaged or worn components can easily be replaced. We have even designed a line of Flared-end pump tubing to supplement the modularity of the kit.

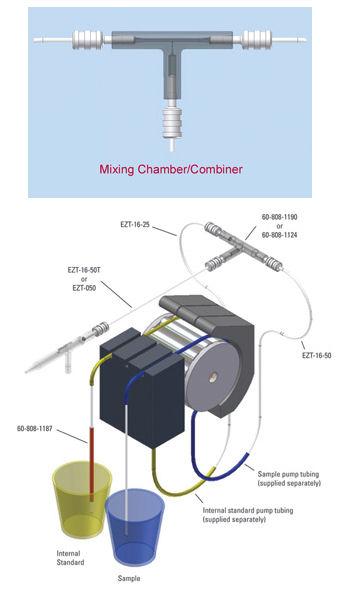

Custom Designed Mixing Chamber/Combiner
The heart of the kit is the mixing chamber/combiner. It is designed for zero dead volume on the input ends which accommodate the sample and addition lines. The output end, however, is designed with a small mixing chamber so that the sample and added reagent are intimately mixed prior to introduction to the nebulizer. All connections to the mixing chamber/combiner use our tried and tested EzyFit connectors. A sampling probe for the reagent addition bottle is included so that it remains well anchored in the bottle.
An Easy Way to Improve Accuracy and Precision
In-line addition of internal standards and ionization buffers provides an efficient means of accurately and precisely dosing all of your samples without extra effort or the risk of error or contamination. Internal standardization (IS) is often used to compensate for physical and mass-space interferences in ICP spectrometry. In many cases, it also enhances short-term and long-term reproducibility.
Ordering details:
Trident Internal Standard Kit for non-HF solutions: P/N 60-808-1185
Trident Internal Standard Kit for HF solutions: P/N 60-808-1150
|
| Specifications |
|
|
The Trident Internal Standard Kit, P/N 60-808-1185, contains: | Part Number | Description | | 60-808-1190 | EzyFit Glass Mixing Chamber/Tee | | EZT-16-50T | EzyFit Sample Tube, Twin (x1) | | EZT-16-50 | EzyFit Sample Tube, 0.5mm ID (x1) | | EZT-16-25 | EzyFit Internal Standard Tube, 0.25mm ID (x1) | | 60-808-1187 | Internal Standard Probe | | KK711E | Vitex Gripping Paper (pkt.6) |
The Trident Internal Standard Kit for HF solutions, P/N 60-808-1150, contains: | Part Number | Description | | 60-808-1124 | HF Mixing Chamber/Tee | | EZT-050 | EzyFit Sample Tube, 0.50mm ID (x1) | | EZT-16-50 | EzyFit Sample Tube, 0.5mm ID (x1) | | EZT-16-25 | EzyFit Internal Standard Tube, 0.25mm ID (x1) | | 60-808-1187 | Internal Standard Probe | | KK711E | Vitex Gripping Paper (pkt.6) |
|
