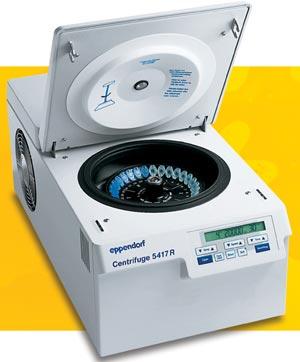

Eppendorf - Centrifuges 5417 C and 5417 R
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
available |
| Company |
Eppendorf
|
| Categories |
Separation: Centrifuges
|
Two tried and trusted models: In many globally successful biotechnology companies, the Centrifuges 5417C and 5417R (refrigerated version) were already present at the beginnings as part of the startup laboratory equipment. And nowadays they are still successfully doing their jobs.
Reason enough for Eppendorf to bring the accessory and rotor program of these microliter centrifuges right up to date. The increasing range of applications will be fully covered, now and in the future. For current users and for todays start-up companies. Exceptionally short centrifuge times can be achieved e.g. for Eppendorf reaction tubes with a relative centrifugal acceleration of 25,000 x g in the fixed-angle rotor. The PCR strip rotor enables the centrifugation of 8-tube and 5-tube strips. And, as before, Eppendorf supplies a swing-bucket rotor for 1.5/2 ml reaction tubes and a 30-position fixed-angle rotor. The new robust and high-temperature resistant aluminum lid and the optimized rotor detection ring means that the aerosol-tight version can be autoclaved in its entirety for up to 2 h at 140 °C to eliminate even prion contamination.
The easy-to-read display and the practical soft keypad on both models enable simple and self-explanatory programming of all operating modes. With short acceleration and braking times at max. rcf and large capacities, the Centrifuges 5417 C and 5417 R cope even with high sample throughput in style.
The Fast Cool function cools the 5417 R rapidly down to 4 °C, which is also maintained during centrifugation at maximum rotational speed. Afterwards, with standby cooling, the centrifuge remains at the required temperature.
Features:
- Embossed foil keypad for simple operation
- Fast Cool function: from room temperature to 4°C in approx. 15 min*
- Short-spin function with preselected rotational speed
- rpm or rcf settings as required (from 500 rpm in steps of 100 rpm)
- Timer up to 99 min or continuous run
- Soft key for gentle acceleration and deceleration
- Temperature settings from -9 to 40°C*
- Sample temperature <4°C maintained at maximum speed
- Automatic imbalance detection
|
| Specifications |
|
Centrifuge 5417 C
Dimensions in cm (W x D x H): 32 x 37 x 23
Weight (in kg): 17
Max. power requirement: 400 W
Power supply: 230 V/50 Hz
Centrifuge 5417 R
Dimensions in cm (W x D x H): 31 x 60 x 25
Weight (in kg): 35
Max. power requirement: 700 W
Power supply: 230 V/50 Hz
|
|
