Interspectrum - Portable FTIR/FT-NIR spectrometer Interspec 301-X
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
available |
| Company |
Interspectrum
|
| Categories |
Spectrometer ( Molec. ): FTIR
|
General

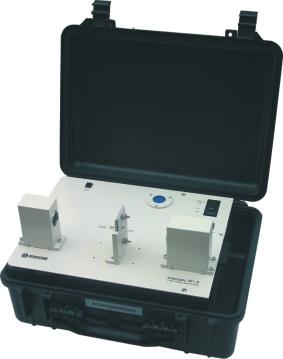

The Interspec 301-X series of FTIR portable spectrometers represent a low cost Fourier transform infrared and near infrared portable spectrometers and employ a number of unique features that ensure high performance from a compact instrument. The Interspec 301-X measures just 49 X 39 X 20 cm and is regarded as one of compact and versatile infrared FTIR spectrophotometers. The design of the 301-X is unique both in terms of optical design and the software and firmware designed specifically to significantly reduce overall analytical times. The optical interferometer geometry is employing a new compact Michelson self compensating optical system that eliminates many of the optical alignment problems found in conventional type optical interferometers. The Interspec 301-X design avoids the use of conventional corner cube optics and dynamic alignment. In practice this means that the instrument can be used in the research laboratory, in any university or college environment and if required, can also be used outside laboratory or in remote locations.
Interferometer Performance
All Interspec FTIR instruments offer high S:N ratios and can provide SNR up to 12000:1. Resolution in the infrared is available 2 cm-1 and programmable up to 32 cm-1 (option 0.5 and 1 cm-1). The overall wavelength range is 7000 to 400cm-1 (IR) or 15000 to 3850 cm-1 (NIR).
The Sample Compartment
The sample compartment is using open optical path geometry. The height of the optical axis above the baseplate is 63.5 mm. This open sample compartment is 200 mm wide and can accommodate practically all of accessories supplied by specialist accessory manufacturers.
Extending Wavelength Ranges
In order to facilitate the use of more than one beam splitter or detector , provision has been made to interchange the beam splitter and detector assemblies allowing the Interspec 301-X to be used at any wavelength from 15000 to 400 cm-1.
Beam Splitters Range subject to coatings
KBr 7,000 to 400 cm-1
ZnSe 5,000 to 500 cm-1
CaF2 10,000 to 1,000 cm-1
Quartz 15,000 to 3,000 cm-1
Detector Options
The standard IR detector is a selected high sensitivity DLATGS pyroelectric design providing the highest possible signal to noise for all but the most demanding applications. However there are many applications in infrared spectroscopy where high resolution analysis is required for materials with high absorption characteristics and for these applications cryogenically cooled MCT detector options are available each with a specific wavelength range.
In case of NIR spectral region two types of photodiodes are available: Si and InGaAs.
Sofware
Interspec for Windows software is supplied on CD and provided with each system shipped. The software includes features for all standard analytical requirements including manipulation of spectral data, instrument control, plot with preview on the screen plus many others. Also included are several facilities for analytical modelling of interferogrammes or spectra, with smoothing, and baseline correction, interactive editing and data manipulation . Also spectral subtraction, mixture subtraction, smoothing derivatives, plot with preview etc. Data input and output is possible in ASCII or JCAMP. Other commercial programmes can be used including Thermo/Galactic GRAMS for features such as Library Search. The Interspec for Windows programme is written in 32 bit protected mode. Our unique software has been designed specifically for multi function applications, it is easy to use and it is provided free of charge. The utility of the Interspec for Windows programme can be extended by adding other commercial programmes such as search, component identification, Kramers Kronig Transform, Chemometrics, etc. to suit individual requirements.
Computer systems
There are no special computer requirements for the Series 300-X. Computer options and performance change rapidly for both bench and lap top configurations. Computers have to meet at least the following minimum specifications:
Processor Pentium 500 MHz
Memory 32 Mbytes RAM
Hard Disc 6.4 Gbytes
CD ROM Yes
However other specifications are also possible subject to user requirements. The standard operating system is a Windows 98/XP platform. The computer can be ordered as a separate component with the instrument or the instrument can be interfaced to an existing computer providing it meets the specifications as defined.
Air Cooled Infrared Source
Our Infrared source is a long lifetime and trouble free operation device. The reason is simple in that our design achieves excellent wavelength emission characteristics and very high stability. The colour temperature of the source is about 12000C.
In the NIR region a quartz-halogen lamp is used.
Desiccated and Sealed Interferometer
The Interspec 301-X series of instruments employ a sealed and desiccated interferometer, ensuring high spectral integrity with low levels of water vapour within the interferometer. We also offer a version (301-XZ) that employs a ZnSe moisture insensitive optics to be impervious to water vapour and can be used to advantage in serious tropical environment's. Near infrared version (301-XN) employs a fused silica optics and is insensitive to any influence of water vapour.
Models
Interspec 301-X - Standard FTIR Portable Instrument with KBr optics.
Interspec 301-XZ - Non Water Sensitive FTIR Portable Instruments for High Humidity with ZnSe optics
Interspec 301-XN - Near Infra Red Portable Instrument with fused silica optics.
|
| Specifications |
|
Wavelength range, IR 7000 to 400 cm-1 (without ATR accessory)
Wavelength range, NIR 15000 to 3850 cm-1
Resolution, standard 2 cm-1 (8 cm-1 - NIR)
Resolution, option 1.0 or 0.5 cm-1
Interferometer Self aligning
Beam diameter 30 mm
Aperture ratio f 3.2
Beamsplitter, standard IR Multicoated KBr
Beamsplitter, option ZnSe, CaF2, CsI
Beamsplitter, standard NIR Fused Silica
Frequency reference HeNe laser
Sample chamber Open optical path geometry, optical axis
63.5 mm above the baseplate, wide 200 mm
Accessories compatible with all of your favorite accessories
Beam at sample 10 mm diameter
IR source High intensity air cooled
NIR source Quartz-halogen lamp
Detector, IR low noise DLATGS
Detector, NIR Si, InGaAs photodiode
Dessiccant possibility Yes
Operating system Windows 98/XP
Power 90-230 VAC, 12 VDC, 40 W
Dimensions W49xD39xH20 cm
Weight 18 kg
Temp. environment 15 - 28 0C
Humidity environment Best below 65%
|
|
