Instrument Database:

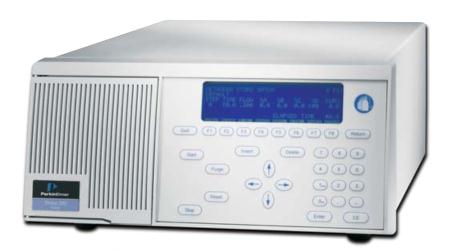

PerkinElmer Inc. - Series 200 Micro Pump
| |
|
|
| |
|
| |
|
| Year of introduction |
2005 |
| Status |
historical ( out of sale ) |
| Company |
PerkinElmer Inc.
|
| Categories |
Chromatography: LC-Pump
Chromatography: LC-Pump: Gradient/Binary
|
|
The Series 200 Micro Pump, with its ultra-low delay volume, is ideal for narrowbore chromatography – or as a front-end to your LC/MS. The Series 200 MicroPump offers superior flow rate precision, compositional accuracy, and retention-time precision for either isocratic or gradient separations. The Series 200 Micro Pump is available in isocratic or binary high pressure blending with user customizable mixing. Whenever “no delay volume” and “ultra-fast gradient” are required, the Series200 Micro Pump is the solution for your applications. FEATURES
- Flow Rate Range: 0.01 mL/min to 10.0 mL/min
- Choice of Microbre Isocratic, Binary or Quaternary Solvent Delivery
- Automated Solvent Compensation
- Minimal Pulsations
- Low Mixing Volume
- No Air Bubbles,
|
| Specifications |
|
| Number of Solvents | 4 | | Pump Max. Pressure | 6200 psi | | Flow Precision | 0.3 % | | Flow Accuracy | 1 % | | Flow Delivery | Single Piston | | Standard Flow Rate | 1 to 3000 µL/min | | Depth | 43 cm | | Height | 14 cm | | Width | 30.5 cm | | Weight | 60 lbs |
|
|
