QUMA Elektronik & Analytik GmbH - QFID ® -100 GC - headspace- combination
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
available |
| Company |
QUMA Elektronik & Analytik GmbH
|
| Categories |
Automation: Autosampler (GC/Head Space)
Chromatography: GC
|
|
The analyser with many advantages: - fast
- easy to operate
- without sample preparation

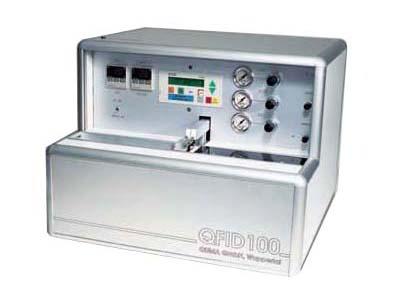

The QFID ® -100 is a GC - headspace- combination. The operation is simple and easy. Therefore the QFID ® -100 is qualified for the production control in the company.
Workflow:
- a defined sample quantity (e.g. 100 cm² foil or ...) goes into a HSS- vial. The vial will be sealed.
- this sample goes into the QFID ® -100. The START button must be pushed. Ready!
- the instrument now analyse the sample and prints out the results e.g. in mg /m². It\'s possible to run automatically up to 8 samples.
Description of function:
The QFID ® -100 work will be total self-contained. The system recognize whether 2 or e.g. 5 samples are available. These samples will be tempered a defined time. Thereafter the QFID ® -100 will inspect the gasphase of the HSS-vial. A chromatographic column separates the components. A FID- detector registers them. So it\'s possible to analyse 18 components within 9 minutes. Another analytic column for different components is possible.
A connected integrator evaluates the signals and brings out a quantitative report. The results will be calculated in e.g. mg / m². Other relevant production data like roll number and customer data can be included in the report. It\'s possible to transfer the data to a host datasystem.
|
