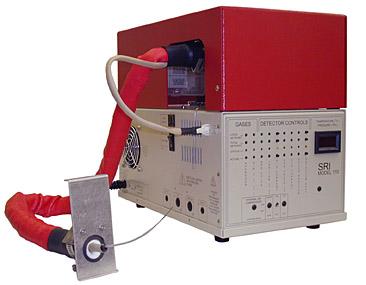

SRI Instruments - Model 110 Stand-alone GC Detector Chassis
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
available |
| Company |
SRI Instruments
|
| Categories |
Chromatography: GC
|
- Add up to Four Detectors to Any GC
- Dimensions: 8.5" wide x 13.5" high by 14.5" deep
- Heated Transfer Line for connection to Host GC
The Model 110 chassis can be configured as a stand-alone detector chassis, capable of mounting any combination of up to four detectors. The Model 110 is equipped with a heated transfer line for connection to the host GC. The heated transfer line requires only a small hole in the host GC's column oven, so the 110 makes it easy to add detectors even to older units that are out of production. The fused, silica lined, metal heated transfer line operates at 200oC, hot enough for most applications. However, analysis of high boiling analytes may not be possible if they could condense in the line at this temperature. For those detectors that require support gases such as hydrogen or air, the 110 is equipped with electronic pressure control (EPC) for each gas. An optional, "whisper quiet" air compressor may be installed to provide air for FID, DELCD, and/or FPD detectors. The standard Model 110 is equipped with analog signal cable output (0-5V) for connection to your data system, integrator, or strip chart recorder. A one, four, or six channel PeakSimple data system may be installed for PC-based data acquisition.
Standard equipment:Model 110 chassis; heated transfer line; "at-a-glance" display of temperatures, pressures, voltages, and detector parameters; analog signal cable for connection to data system; operator's manual; accessory kit; heavy duty reusable shipping container. To completely configure a Model 110 GC, most users will need to specify one or more detectors to be mounted on the chassis.
|
