Component Database:
Glass Expansion - OpalMist PFA concentric nebulizer
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
available |
| Company |
Glass Expansion
|
| Categories |
Sample introduction: Nebulizers
|

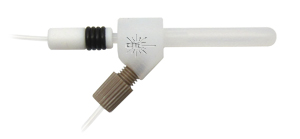

OpalMist - high purity PFA, ideal for ICP-MS
The OpalMist PFA concentric nebulizer is the nebulizer of choice for high precision analyses requiring the highest chemical resistancy to HF, alkalis and organics. The high purity PFA construction makes it ideal for ultra-trace ICP-MS work.
- Material: PFA
- High physical reproducibility ~ 3%
- Strong and consistent self-aspiration
- High tolerance to particulates, up to 75um depending on uptake
- TDS tolerance, typically up to 15%
- Low RSD's due to concentric geometry
- Uses only standard ICP argon supply pressures
- Standard 6mm size fits standard cyclonic spray chambers. Adaptors are available for Scott type spray chambers
- Standard available uptakes: 0.05, 0.1, 0.2, 0.4, 0.6 & 2ml/min
OpalMists with sample uptakes 0.05 - 0.1ml/min are supplied with 1 x NFT-025, UniFit Connector with 1.3mm OD x 0.25mm ID x 700mm long sample tubing.
OpalMists with sample uptakes 0.2 - 0.8ml/min are supplied with 1 x NFT-050, UniFit Connector with 1.3mm OD x 0.50mm ID x 700mm long sample tubing.
OpalMists with sample uptake 2ml/min are supplied with 1 x NFT-075, UniFit Connector with 1.3mm OD x 0.75mm ID x 700mm long sample tubing.
|
