Instrument Database:
Analytica of Branford Inc. - Corsair
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
available |
| Company |
Analytica of Branford Inc.
|
| Categories |
Hyphenated Techniques: LC-MS
Mass spectrometer: ESI-MS
Mass spectrometer: LC-MS
|

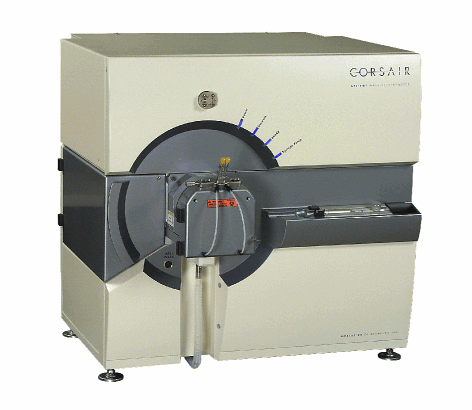

- The Corsair ist a robust electrospray ion source/orthogonal-acceleration time-of-flight mass spectrometer. The compact design of the instrument means it can sit on a bench top freeing up laboratory floor space.
- The electrospray ion source accomodates a wide range of liquid flow rates for method flexibility and offers a rugged, tool-free maintenance design.
- Structure elucidation is facilitated by capillary/skimmer collision-induced dissociation (CID). Rapid swiching between high and low collision energy improves sample throughput.
- A dual-probe electrospray interface facilitates internal mass scale calibration to ensure mass accuracy, without compromising analyte purity. Grounded probes ensure safe operation for the user and attached euqipment.
- High ion transfer efficiency into the TOF-MS is achieved by a self-aligning dielectric capillary coupled to a high-transmission hexapole ion guide.
- The multi-pumping stage hexapole ion guide doubles as a 2-D trap to yield enhanced sensitivity for small sample amounts.
- A high-energy post-acceleration detector improves high m/z detection yields.
- Digitization rates of 0.5 - 2.0 GHz are user selectable.
- AVIATOR software provides user control of all acquisition and analysis functions, including multi-state acquisition and evaluation, charge-state deconvolution, etc.
|
| Specifications |
|
Sensitivity: > 50:1 S/N for 50 pg of reserpine
Mass resolving Power: > 3000 FWHM
> 5000 FWHM in high resolution mode
Mass accuracy: < 0.002 u rms for 150 - 400 u
< 5 ppm rms for 400 - 1000 u
(internal calibration)
Mass range: 5 - 20,000 m/z
Data acquisition: up to 20,000 pulses per second
up to 100 spectra per second
Dynamic range: 104 concentration range - intra spectrum
ESI Probe flow rate: 4 µL/min to 1 mL/min
Size (W*D*H): 69*58*68 (D=68 with ion source mounted)
Weight: TOF: 104 kg (230 lb), Foreline pump 40 kg (88lb)
|
