Instrument Database:

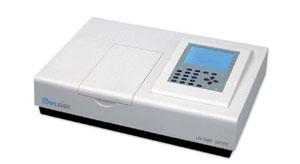

Beijing Rayleigh Analytical Instrument Corporation (BRAIC) - UV-2600 UV/VIS SPECTROPHOTOMETER
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
historical ( out of sale ) |
| Company |
Beijing Rayleigh Analytical Instrument Corporation (BRAIC)
|
| Categories |
Spectrometer ( Molec. ): UV/VIS
|
FEATURES:
- Wide wavelength range, satisfying requirement of various fields.
- Five options for spectral bandwidth selection: 5nm, 4nm, 2nm, 1nm and 0.5nm, made according to customer’s need.
- Fully automatic control, realizing the simplest measurement.
- Optimized optics and electronic system design with over 30-year experience, ensuring high performance and reliability.
- Rich measurement method adopted: wavelength scan, time scan, multi-wavelength determination, multi orders of derivative determination (optional), etc., meet different measurement requirement.
- Automatic 10mm 8-cell holder design, changeable to automatic 4-cell holder for 5mm~50mm cells.
- The measured data can be printed out. RS-232 interface available for connecting computer. Parameter and standard curve can be saved .
|
| Specifications |
|
|
Wavelength range:
190-1100nm
Spectral Bandwidth:
2nm (5nm, 4nm, 1nm, 0.5nm optional)
Wavelength accuracy:
±0.3nm
Wavelength Reproducibility:
0.15nm
Photometric Accuracy:
±0.3%T (0 - 100%T)
±0.002A (0 - 0.5A)
± 0.004A (0.5A - 1A)
Photometric Reproducibility:
≤0.2%T
Working mode:
T, A (-0.3～3.5A), C, E
Stray Light:
≤0.1%T(NaI, 220nm)
Baseline Flatness:
±0.003A
Stability:
≤0.002A/h (at 500nm, after warming up)
Detector:
silicon photo-diode
Display:
6 inches high light blue LCD
Power:
AC: 220V/50Hz, 110V/60Hz, 180W
Dimensions:
580x425x140mm
Weight:
30kg
|
|
