Instrument Database:

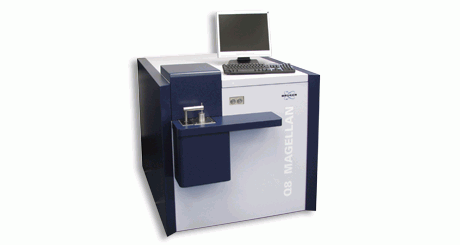

Bruker Elemental GmbH - Q8 MAGELLAN - Optical Emission Spectrometer
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
available |
| Company |
Bruker Elemental GmbH
|
| Categories |
Spectrometer ( Atom. ): AES: Arc/Spark
|
High-End Optical Emission Spectrometer for Metal AnalysisWhere others give up, Bruker Elemental's mission begins: from plenty of enthusiasm plus even more know-how, arose the idea to develop a new optical emission spectrometer; a spectrometer setting new standards with respect to technology, reliability, flexibility, and handling. The result is the internationally recognized Q8 MAGELLAN. Top reviews by the European market show Bruker Elemental already amongst the leaders in the spectroscopy field. Q8 MAGELLAN is the first spectrometer worldwide that offers a previously unseen quality of analysis because of its unlimited combination possibilities of measurement parameters. Extremely low maintenance and tailored software underline the exceptional quality of this uncompromised product for elemental analysis in the metal producing and processing industries. Offered in different versions it is consequently suitable for routine operation in both laboratory and production environments. Newly developed electronics, detectors, optical components and information technology ensure that Q8 MAGELLAN dramatically differs from the broad range of spectrometers on the market. The components were mated in such a way that unmatched performance can be guaranteed. Thus, the Bruker Elemental development team succeeded in bringing an end to the long term stagnation in the field of premium spark spectrometers, breaking new ground with the development of Q8 MAGELLAN. Key features of the Magellan spectrometer :
 Vacuum spectrometer with high-resolution optical system
Optimized for demanding applications
Latest channel photomultiplier detector technology (CPM)
Single-spark detection up to 1000 Hz
Time-resolved spectroscopy for maximum sensitivity
750 mm focal length, highest spectral sensitivities, low detection limits
Up to 128 channels
|
| Specifications |
|
Optical system
Paschen Runge / 750 mm
Wavelength range: 110 nm – 800 nm
Channel photomultiplier detectors
Highest anode sensitivity
Very stable and low dark current
Up to 128 analytical channels
Single vacuum optic
Read-out system
Time-resolved reading of single sparks
Individually settable integration windows for all analytical channels with simultaneous acquisition of each single spark
Scalable and microprocessor controlled read-out system
Use of modern and programmable electronics for time-critical jobs
Integrators are matched to detector characteristics
High-quality PCI data recording board with a sampling rate up to 250 kHz
Instrument control
Communication : Use of Ethernet and TCP/IP between PC and instrument
as well as for all instrument internal communication
Source
Digital generation of any discharge current curve through programmable logic modules
Integrated emergency stop
Maintenance-free, inductive ignition
Discharge time 10 μs to 2 ms
max. 200 A peak current
max. 1000 Hz spark sequence
Software
Analysis software with integrated single spark evaluation
Material quality monitoring with dynamic internal and external limit check
Material identification of unknown samples
Analysis management
Integrated analysis management using SQL data base
Storage, sorting, filtering, display, searching, printing, archival
Comprehensive statistic evaluation,
SPC charts (option), certificate
Email supported reporting system
Integrated systems for diagnosis and maintenance via internet or telephone
provide efficient service at short term
|
