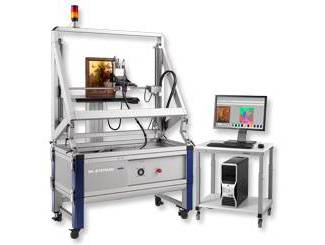

Bruker Nano GmbH - M6 JETSTREAM - Large Area Micro X-ray Fluorescence Spectrometer
| |
|
|
| |
|
| |
|
| Year of introduction |
2014 |
| Status |
available |
| Company |
Bruker Nano GmbH
|
| Categories |
X-ray spectrometer: XRF
|
|
The Bruker M6 JETSTREAM is designed for the non-destructive elemental analysis of large samples. The mobility of the instrument allows it to be placed at the site of the object of interest, be it in a gallery, museum or on the shop floor. The performance parameters enable scanning areas of 800 mm x 600 mm with a variable spot size down to 100 µm and speeds of up to 100 mm/s. As the system is capable of measurement "on-the-fly" this results in a pixel dwell time of as short as 1 ms. Element distribution analysis for large samples with highest performance: - The M6 JETSTREAM measurement rig can be tilted, allowing samples to be scanned either horizontally or vertically
- The spot size of the M6 JETSTREAM can be adapted in five steps to match the structure of the sample and the desired spatial resolution
- Bruker's advanced XFlash® silicon drift detectors (SDD) are used for the detection of fluorescence radiation. They feature high count rate capability and best energy resolution over a wide count rate range
- Special safety circuitry provides optimal user protection against exposure to X-rays
- Ultrasound distance measurement safeguards against collision with the measurement object
- Regardless of sample size, the M6 JETSTREAM can be easily positioned due to its mobility
- It can be disassembled into four parts which makes it transportable.
|
|
