Instrument Database:

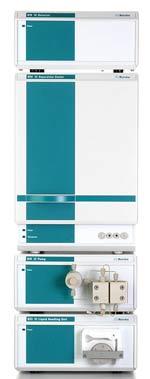

Metrohm AG - MIC-2 Advanced - Modular anion system with chemical suppression
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
available |
| Company |
Metrohm AG
|
| Categories |
Chromatography: LC/IC
|
|
Modular anion system with chemical suppression
The "MIC-2 Advanced" modular anion system with electronic and chemical suppression gives you the largest possible degree of flexibility: you have a free choice of eluents whenever you are working with electronic suppression alone. As the sensitivity of the system can be increased by using chemical suppression for anions (in contrast to cations), this system additionally contains the "MSM" Metrohm Suppressor Module, which is incorporated in the 820 IC Separation Center. The 833 IC Liquid Handling Pump Unit is used for regeneration and rinsing. The 820 Separation Center is equipped with a column oven which lowers the detection limits even further, particularly when working with a high background conductivity.
It goes without saying that cations can also be determined with this system. In this case the suppressor and pump unit are simple switched off. After the column and eluent have been changed the cation system is ready for use.
The system is completely made from PEEK: pump head, valve, pulsation absorber, "MSM" and all inline filters are made from PEEK (polyetheretherketone). The maximum pressure at which such a system can be operated is 35 MPa (4900 Psi).
Simple automation with the 838 Advanced IC Sample Processor (2.838.0010) or the 838 Advanced IC Filtration Sample Processor (2.838.0210) can be carried out directly and without additional cables. If the 833 IC Liquid Handling Pump Unit is also to be remotely controlled by the sample changer then a cable and an adapter are additionally required:
6.2125.090 Remote extension cable (1:1)
6.2125.120 Adapter for distributing remote lines to five 25-pin sockets
|
|
