Instrument Database:

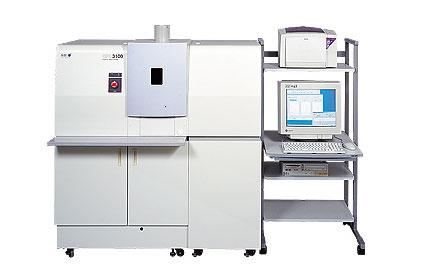

SII Nano Technology Inc. - SPS 3100 ICP Optical Emission Spectrometer
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
historical ( out of sale ) |
| Company |
SII Nano Technology Inc.
|
| Categories |
Spectrometer ( Atom. ): AES: ICP-AES
|
To respond to diversifying needs including resolution, throughput, precision and others, each unit has been modularized, simplifying the selection of system construction. In addition, with the miniaturization of the device, the installation space can be used more effectively with this next generation system ICP optical emission spectrometer.
Features
- High-sensitivity analysis: Upgraded the optical system, improving the f-value of the optical system and the reflectivity of the incident mirror, dramatically increases sensitivity.
- High resolution: Achieved 0.0045 nm resolution, among the best in the world, on models with 4320 gratings/mm diffraction grating (Type H).
- Robustness and reliability against Matrix: Performs highly sensitive analysis by introducing various samples through lateral view observation that is robust against the effect of matrix.
- Various spectrometer systems and twin sequential: Able to select from variety of spectrometers depending on analysis objective. The two independent direct photometric spectrometers enable simultaneous driving/simultaneous measurements over a wide wavelength range, with high speed at 20elements per minute.
|
|
