Instrument Database:

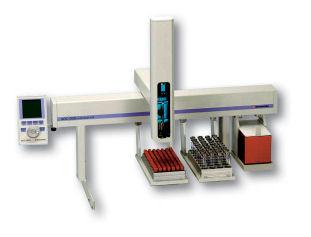

Shimadzu Europe - AOC-5000 Liquid, Headspace and SPME GC Injection System
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
available |
| Company |
Shimadzu Europe
|
| Categories |
Automation: Autosampler (GC/Head Space)
Automation: Autosampler (GC/Liquid)
Automation: Autosampler (GC/SPME)
|
|
...the liquid mode
The AOC-5000 is the only GC sample injection system that combines liquid, large volume and headspace ingection in one single instrument.
This unique capability allows quick switching from one application to another on the same GC workstation.Regardless if your samples may be processed in headspace or liquid mode, or if your method requires split/splitless or on column injection, your new instrument setup is ready in a few minutes.
...the SPME mode
The AOC-5000 provides a fully automated SPME (solid phase microextraction) sample preparation process.*
All movements of the SPME fiber from precondition, adsorption and desorption are precisely controlled for optimum precision.Prior and during extraction the samples can be shaked and heated, which dramatically reduces analysis time for semivolatile compounds.Variable vial penetration depth allows to extract the compounds in liquid sample itself or in the headsoace extract the compounds are thermally desorbed inthe hot GC injector, the fiber may be fully cleaned again in a special heated and purged clening station.
|
| Specifications |
|
|
Liquid mode
Injection speed
Selectable from 0.01µl/sec, up to 250 µl/sec
Vial size
up to
600 1ml micro vials
294 2ml standard vials
96 10ml or 20ml vials
4 deepwell microplates
6 standard microplates
Syringe cleaning
Wash Station for 2 different solvents
Headspace mode
294 2ml standard vials, 96 10ml or 20ml vials
|
