Instrument Database:

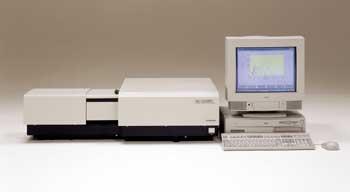

Shimadzu Europe - UV-3101PC
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
historical ( out of sale ) |
| Company |
Shimadzu Europe
|
| Categories |
Spectrometer ( Molec. ): UV/VIS/NIR
|
|
Shimadzu's Personal Spectroscopy Software is designed for instrument control and data analysis for the UV-3101PC.
Never before has a data processing system been so versatile without sacrificing technique-specific power. We have taken every advantage of the Windows environment, making operation graphic and easy to learn. The software is so well constructed and perfectly integrated with the spectrophotometer, you hardly know you're working with a PC. Added features like Pop-Up Scan and pull-down menus give you instant access to methods, data and unparalleled support.
Our unique six-grating system gives you what no one else can. Known resolution at every point of the spectrum.
We're giving you the power and precision of this research-grade spectrophotometer at an affordable price. The UV-3101PC is by far the best value available of the market today. You could pay up to 50% more to get a research-grade UV-VIS-NIR spectrophotometer, without the benefit of nearly as many outstanding features. What's more, with Shimadzu you are assured of reliable precision-engineering and powerful Personal Spectroscopy Software as well.
What sets our system apart is the use of two sets of three gratings to cover the wide wavelength range from the ultraviolet to the near-infrared. This gives you relatively constant energy and signal-to-noise. With the addition of the MPC-3100, you expand your measurement capabilities to include solids and bulky objects. This MPC-3100 features many attachments for measuring reflectance and transmittance at several angles, permitting measurement at high energy throughput and at ranges up to 2600 nm. Our reputation for quality engineering and manufacturing places us in the enviable position: offering you a top research-grade optical system and a reasonable price.
Features:
- Maximum efficiency optical design extends throughput over a wide range.
- Wide Dynamic Range -4 to 5.0 ABS 20-bit ADC assures maximum signal resolution and reproducibility.
- Resolution to 0.1 nm
- Excellent stray light rejection: less than 0.00008% at 220nm
- Sealed optics
- Self-aligning lamps with selectable switchover
- Optional MPC-3100 large sample compartment with spill-trough construction
- High-mass, stable optional bench
- Application engineered
- Wide variety of optional accessories
- Selectable and constant bandpass
- Double beam
Shimadzu's Personal Spectroscopy Software Offers:
- Advanced File Handling
- Launch third party applications or programs from menu
- Extensive transformation & scaling functions
- On-line extensive Help function with Search ability
Applications Are a Snap:
- Time Course
- Quantitative Measurement
- Pop-Up Scan
- Blank Subtract
- Transforms
- Point Pick
- Peak Pick
- Peak Area
Present Your Data Beautifully and Effortlessly:
- Copy To Clipboard
- Dynamic Data Exchange
- Legends & Notes
- Custom Reports & Templates
- Optional File Translation Software
|
| Specifications |
|
Wavelength range
190nm~3200nm
Spectral band width (slit width)
9 steps in ultraviolet/visible region; 0.1, 0.2, 0.5, 0.8, 1, 2, 3, 5, 7.5nm
12 steps in near-infrared region; 0.4, 0.6, 0.8, 1.2, 2, 3, 4, 6, 8, 12, 20, 30nm
Resolution
0.1nm
Display of wavelength
0.1nm increments
Setting of wavelength
The start and end wavelength in scanning can be set in increments of 1nm.
With the GOTO WL command, wavelength can be set in increments of 0.1nm
Wavelength accuracy
±0.3nm (at slit width of 0.2nm) in ultraviolet/visible region
±1.6nm (at slit width of 1.2nm) in near-infrared region
Automatic wavelength correction is possible.
Wavelength repeatability
±0.1nm in ultraviolet/visible region
±0.4nm in near-infrared region
Wavelength scanning speed
In the case of wavelength setting by:
GOTO WL command: 2100nm/min
FAST 1600nm/min (with 2nm sampling interval)
FAST 700nm/min
MIDDLE 200nm/min These are the speeds when scanning with 0.5nm sampling interval.
SLOW 100nm/min
SUPER SLOW 50nm/min
Switching of the light sources
The light sources are switched automatically in conjunction with wavelength scanning. The wavelength at which the light sources are switched is selectable in the range of 282nm to 393nm in 0.1nm increments.
Stray light
Less than 0.00008% (220nm , NaI 10g/L aqueous soln.)
Less than 0.00005% (340nm , UV-39 Filter)
Less than 0.08% (1690nm , CH2Br2 10mm)
Less than 0.08% (2740nm , silica plate of t=6mm)
Photometric system
Double-beam, direct ratio measuring system
Dynode feedback system for ultraviolet/visible region
Slit program/gain control system for near infrared region
With summing feedback system, negative absorbances or transmittances and reflectances greater than 100% can be accurately measured.
Photometric range
Absorbance : -4~5 Abs (up to 0.001 Abs.)
Transmittance: 0~999.9%T (up to 0.01%)
Reflectance: 0~999.9%R (up to 0.01%)
Recording range
Absorbance : -9.999~9.999 Abs (0.001 Abs of the full scale maximum expansion)
Transmittance: -999.9~999.9%T (0.1% of the full scale in maximum expansion )
Reflectance: -999.9~999.9%R (0.1% of the full scale in maximum expansion)
Photometric accuracy (Determined using the NBS standard reference) ±0.002 Abs in the range 0~0.5 Abs.
±0.004 Abs in the range 0.5~1.0 Abs.
±0.3%T in transmittance filter NBS930D.
Photometric repeatability ±0.001 Abs in the range 0~0.5 Abs
±0.002 Abs in the range 0.5~1.0 Abs
±0.1%T in transmittance
Response
Most appropriate response is set automatically according to the spectral slit width and scanning speed.
The fastest response is 0.1 sec.
Automatic zero setting function
One-touch setting is available with AUTO ZERO command |
