Gilson, Inc - MALDILC System
| |
|
|
| |
|
| |
|
| Year of introduction |
|
| Status |
available |
| Company |
Gilson, Inc
|
| Categories |
Chromatography: LC/HPLC
|

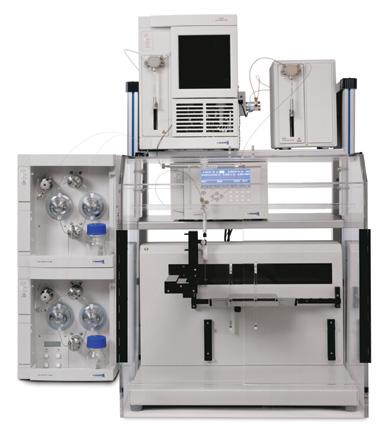

Gilson's powerful new MALDILC™ System is designed to perform nano to microbore HPLC with fraction collection and simultaneous matrix addition onto MALDI plates. The plated fractions can then be analyzed repeatedly by MALDI-TOF MS. The Gilson MALDILC System is an ideal preparation technique for easily automating what has historically been a manual procedure.
- Nano, capillary and micro HPLC with fraction collection directly to MALDI targets
- On-line matrix addition with mixing
- HPLC-coupled fraction collection simplifies complex tryptic digests, providing more readable mass spectra
- Compatible with most MALDI target formats
- 350 Micro Pumps deliver accurate and reliable flow rates (300 nL/min to 50 µL/min) without splitting flow
|
| Specifications |
|
|
Sample Loading Capacity
0.1 ng–200 µg, 0.5–100 µL
Optimal Column Size
180 µm–1 mm
Flow Rate
0.3–50 µL/min
Maximum Injection Pressure
5,000 psi (345 bar)
Maximum Pump Pressure
4,350 psi (300 bar)
Matrix Compatibility
THAP, HPA, CHCA, SA, HABA, DHB
|
|
