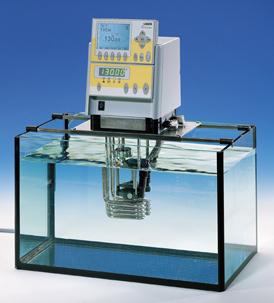

Lauda Dr. R. Wobser GmbH & Co. KG - LAUDA Proline PB C
|
|
|
|
|
|
|
Year of introduction |
|
Status |
available |
Company |
Lauda Dr. R. Wobser GmbH & Co. KG
|
Categories |
Temperature control: Thermostats |
Bridge thermostatic circulator with latest microprocessor technology and many functions for programming and information Back-lit graphic LCD display with high resolution and different display modes Additional green LED display for temperature Input either via cursor keys, numeric soft keys or both. Additional Tmax key for overtemperature Command console can be detached and used as remote control EasyUse system for simple operation of the whole unit SelfCheck Assistent for system diagnosis Fully electronic continuous controller with PID action for internal and external control PowerAdapt system for the use of the maximum possible amount of heat as long as permitted by the power supply system Low-level protection and adjustable over-temperature protection with acoustic alarm. Float switch for identifying of low or high level LAUDA Varioflex pump (pressure/suction) with 8 selectable levels Optically decoupled RS 232/485 interface integrated as a standard Option for upgrading with up to 2 interfaces (RS 232/485, analogue or contact modules) Programmer with 150 temperature/time segments that can be separated into 5 programs Telescopic rods for bath widths up to 550 mm Installed cooling coil, pump connectors on the side and in the back, installed bypass
|
Specifications |
|
Technical data (according to DIN 12876) Working temperature range 30 °C ... 300 °C - with external cooling -30 °C ... 300 °C Temperature control ± 0,01 °C Heater power 3,5 kW Pressure-/Suction pump - Pump pressure/suction max. 0,7/0,4 bar - Pump flow max. pressure/suction 25/23 L/min Bath volume max. 80 L Bath depth 200 mm min. Overall dimensions (W x D x H) - x 185 x 520* mm * without console, otherwise 56 mm higher
|
|
