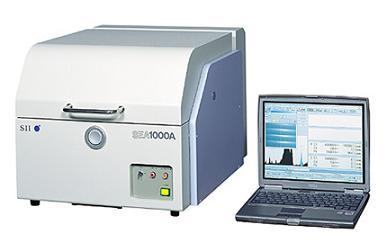

Seiko Instruments Inc. - SEA1000A Hazardous Substance Monitor

Overview
SEA1000A is a dedicated machine that easily, quickly and non-destructively detects cadmium, lead, mercury and other hazardous substances banned by the enforcement of the RoHS directive. Since a detector needs no liquid nitrogen is installed in this device, it does not require the hassles of periodic refilling, and operates simply with electric power in plants where liquid nitrogen may be in short supply.

Features

• The device is equipped with a detector that does not require liquid nitrogen, improving usability and maintainability.
• Achieved minimum limit of detection to a few ppm, while also reducing measuring time by half the conventional time using DSP (Digital Signal Processor).
• With a sample chamber measuring 370mm x 320mm x 155mm, large samples can be measured in a nondestructive manner.
• Adoption of a large detector, and dextremely shortening the distance between the detector and a sample resulted in effective detection of X-ray. Achieving the sensitivity surpassing Si(Li) detector.
• Compliant with measurement of small amounts of Cd, Pb, Hg, Br and Cr banned by the EU's RoHS directive.
• Correction mechanism allows measurements regardless of the plastic's shape, thickness or area.
• Automatically measures maximum of 12 samples with the sample changer (optional).
• Attaching the manual stage makes delicate alignments possible.
• Equipped with hazardous metals data management mechanism that makes comparison between detailed sample data and measurement results easy.
• Links with Microsoft Word® to easily create reports.

Specifications
Elements Measured:                  Atomic numbers 16 (S) through 92 (U)
Sample Forms:                         Solid, Fine Particles, Liquids
X-ray Generating System:           Tube voltage: 50 kV Current: 1mA
Detector:                                  Si Semiconductor Detector
Irradiation Area:                        Round 1mm and 5mm
Sample Observation:                 Color CCD Camera
Filter:                                       4 modes automatically switched
X-ray Station:                            Notebook Type PC
Printer(Optional):                       Inkjet Printer
Quantitative Analysis Functions:
                                               Spectrum measurement, Automatic identification,
                                               Comparison display, KLM marker display,
                                               Subtraction display
Qualitative Analysis Functions:     Bulk FP method, Calibration curve method
Statistics Processing:                  MS Excel ®installed
Report Creation:                        MS Word ®installed
Power Supply:                            AC 100~120V, 200~240V plus or minus 10%, 10A
