Instrument Database:

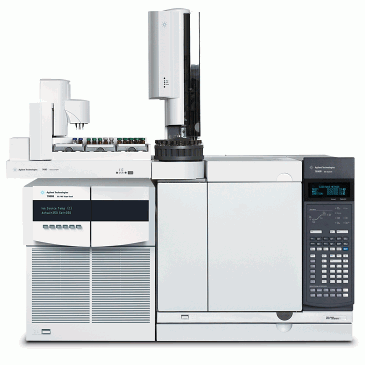

Agilent Technologies Inc. - 7000B Triple Quadrupole GC/MS System
| |
|
|
| |
|
| |
|
| Year of introduction |
2010 |
| Status |
historical ( out of sale ) |
| Company |
Agilent Technologies Inc.
|
| Categories |
Mass spectrometer: GC-MS
|
|
- High sensitivity EI source and ramped-iris for the detector improve sensitivity across the entire mass range (demonstrated installation specification: IDL ≤ 12 fg OFN)
- Industry leading MRM speed at 500 transitions per second, with a minimum dwell time of 1 msec and zero cross-talk
- A high pressure, linear collision cell with “Helium Quench Gas” to reduce neutral noise from metastable helium atoms
- Patented hyperbolic quadrupole enhances performance up to 1050u; the unique stability of the quartz monolith allows the analyzer to be heated to 200˚C to eliminate contamination commonly seen with metal quadrupoles operated at lower temperatures
- High-performance chromatography provided by the Agilent 7890A GC
- Integrated Capillary Flow Technology provides reduced source maintenance, shorter analysis cycle times, and increased column lifetime
- Small laboratory bench footprint – the mass spectrometer is only 14 inches (35 cm) wide
- Inert ion source – programmable up to 350 ˚C – delivers enhanced response for active compounds and late eluters
- Optional Electron Impact (EI) and Chemical Ionization (PCI and NCI) sources are available
- Triple-Axis HED-EM Detector provides lower neutral noise
- Differentially pumped vacuum system with a single mechanical roughing pump
- Agilent MassHunter software, with Autotune, Batch-at-a-Glance data review, and parameter-less integrator, helps maximize productivity
|
